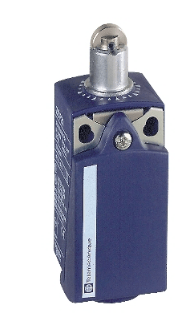

XCKP2102G11 - FIM DE CURSO PLASTIC NANF PIST COM ROLDA

Folha de dados

Main

Range of product

Telemecanique Limit switches XC Standard

Series name

Standard format

Product or component type

Limit switch

Device short name

XCKP

Sensor design

Compact form C conforming to CENELEC EN 50047

Body type

Fixed

Head type

Plunger head

Material

Plastic

Body material

Plastic

Head material

Zamak

Fixing mode

By the body

Movement of operating head

Linear

Type of operator

Spring return roller plunger metal

Type of approach

Lateral approach, 2 directions

Number of poles

2

Contacts type and composition

1 NC + 1 NO

Contact operation

Snap action

Complementary

Switch actuation

By 30° cam

Electrical connection

Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²

Cable entry

1 entry tapped for Pg 11 cable gland

Contacts insulation form

Zb

Positive opening

With

Positive opening minimum force

36 N

Minimum force for tripping

12 N

Maximum actuation speed

0.5 m/s

Repeat accuracy

0.1 mm on the tripping points with 1 million operating cycles

Contact code designation

A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A

[Ui] rated insulation voltage

300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14

Maximum resistance across terminals

25 MOhm conforming to IEC 60255-7 category 3

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1

Short-circuit protection

10 A cartridge fuse, type gG

Electrical durability

5000000 cycles, DC-13, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 24 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Mechanical durability

10000000 cycles

Width

31 mm

Height

65 mm

Depth

30 mm

Net weight

0.095 kg

Terminals description ISO n°1

(21-22)NC
(13-14)NO

Environment

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

25 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

IP degree of protection

IP66 conforming to IEC 60529
IP67 conforming to IEC 60529

IK degree of protection

IK04 conforming to EN 50102

Electrical shock protection class

Class II conforming to IEC 61140
Class II conforming to NF C 20-030

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Protective treatment

TC

Product certifications

UL
CCC
CSA

Standards

IEC 60204-1
CSA C22.2 No 14
IEC 60947-5-1
EN 60947-5-1
EN 60204-1
UL 508
