Descrição do Produto
Description

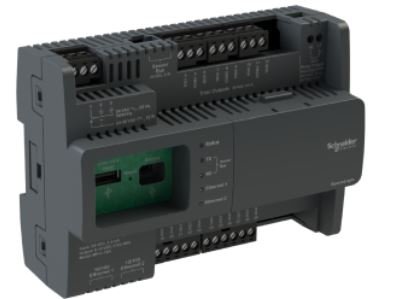

SpaceLogic MP-C Controller is a multi-purpose, fully programmable, IP based field controller ideal for plant room HVAC control. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server. The MP-C models support an optional display that provides insight and control of the inputs and outputs. The MP-C-18A has 10 Universal I/O Type Ub, 4 DO Triacs, 3 Form A Relays and 1 HP Relay I/O point. It supports the SpaceLogic IP-IO Expansion Modules for extended I/O point count. Its dimensions are 110 mm (4.3 in.) in height, 153 mm (6.0 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).
Specifications
| device short name | MP-C-18A |
|---|---|
| Function available | Programmable Smart sensor input |
| Product or component type | Field controller |
| Maximum number of I/O expansion module | 3 |
| Device application | Low voltage fan coil Low voltage heat pump Low voltage rooftop Air flow control |
| Topology | Star Daisy chain Rapid Spanning Tree Protocol (RSTP) |
| Model | MP-C-18A |
| Product certifications | RCM CE cUL listed UL listed |
| Mounting mode | DIN rail mount Panel-mounted |
| Width | 153 mm |
| Power consumption in W | 12 W |
| Power consumption in VA | 22 VA |
| Network frequency | 50 Hz 60 Hz |
| Clock drift | +/- 1 min/month |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -40…70 °C |
| input/output type | 10 universal I/O |
| input voltage | -0.5...24 V DC for universal input |
| memory type | 123 kB backup 32 MB flash 128 MB RAM |
| communication port support | ETHERNET |
| [Us] rated supply voltage | 24 V AC +/- 20 % 24...30 V DC 21...33 V DC |
| number of outputs | 4 triac output 3 form A relay output 1 relay output |
| depth | 64 mm |
| protection type | MOV suppression Internal fuse |
| output voltage | 250 V AC,12 A for high power relay output 24 V DC,12 A for high power relay output 250 V AC,2 A for form A relay output 30 V DC,2 A for form A relay output -0.5...24 V DC for universal output 24 V AC for triac output |
| output current | 0.5 A max triac output |
| number of port | 2, connector type: RJ45 1, connector type: USB type A female 1, connector type: USB device port Mini-B |
| backup time | 7 days |
|---|---|
| flame retardance | UL94-5V |
| communication port protocol | BACnet IP |
| standards | UL 916 ICES-003 EN 61000-6-2 EN 50491-5-3 EN 60730-1 EN 60730-2-11 EN 50491-3 EN 61000-6-3 EN 50491-5-2 FCC part 15 subpart B class B |
| range compatibility | SpaceLogic IP controller |
